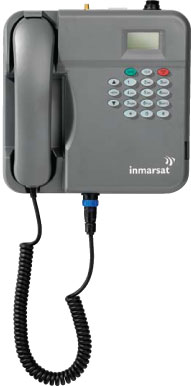

Inmarsat FleetPhone
$0.00
In stock
Product Details
Inmarsat's FleetPhone service is a low-cost fixed phone service ideal for use on smaller vessels - potentially as an economical solution for crew calling.
Inmarsat FleetPhone Specifications
Main Unit
| Diamensions |
82x221x231mm apprix. |
| Wieght | 1.3kg approx. |
Powe Supply
| Operating voltage | 10 - 28 volts DC |
Antenna
| Type | Omni-directional/RHCP helical |
| Elevation | >200 sub 1-4 satellite |
| Pitch / roll |
+/-200 |
| G/T |
-23.5 to -24.5dBK |
| EIRP(burst) |
5 to 6dBW |
| Beam width |
1800 |
| Antenna survival temp | -40 to 800C |
| Antenna operational temp | -25 to 550C |
RF cable
| Attenuation |
10dB |
| Main unit to antenna length | 10m |
| Junction box to main unit | 3m |
| Connector to antenna |
N-type |
| Connector to main unit | SMA type |
