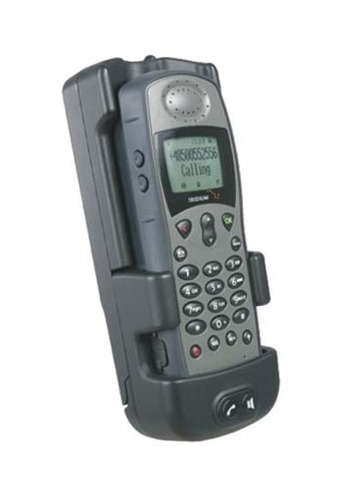

Iridium 9505a Portable Docking Unit allows using Iridium 9505a satellite phones in all types of vehicles, such as cars, trucks, boats and ships.

Sattrans 9505a Docking Station Specifications

Features

Due to the nature of the satellite signal, requiring direct view of the satellite, Iridium PDU significantly increases reliability of the Iridium satellite service on the go. Hands-free capabilities of Iridium PDU let you drive in comfort and safety while using your Iridium phone. With the Digital Signal Processing technology, the voice quality and comfort of use have never been greater. Iridium PDU has built-in capabilities to use all features of your Iridium phone and service such as voice communications, text messaging, data transfer, voicemail and call holding/forwarding.

Specifications

• Full duplex hands-free operation of Iridium phones
• Perfect voice reproduction and echo cancellation
• Mutes car stereo when calling
• Two-mode operation: loud speaker or private talk (via optional handset)
• Automatic adjustment to noise conditions
• Data transfer via RS232 Serial Data port
• Charges phone battery
• Operating temperature: -25°C…80°C (-13°F…176°F)

In the Box

• Iridium 9505a compatible holder with data port (RS232) and
• external antenna port (TNC female)
• Electronics box
• Microphone
• Speakerphone
• Cables and screws pack
• Installation & operation manual (English, Spanish, French,  Russian)
• Satellite external antenna (optional)
• Privacy handset (optional)
